Storing non-standard, irregular, or oversized pallets on standard 42-inch deep racking systems often leads to wasted space, forklift handling inefficiencies, or severe safety hazards. You might find your operation struggling to fit awkward loads onto conventional shelves safely. While the standard GMA pallet (48" x 40") dictates most off-the-shelf configurations, high-density manufacturing, building materials, and specialized logistics frequently demand bespoke storage solutions. Standard dimensions simply do not work for every industry.

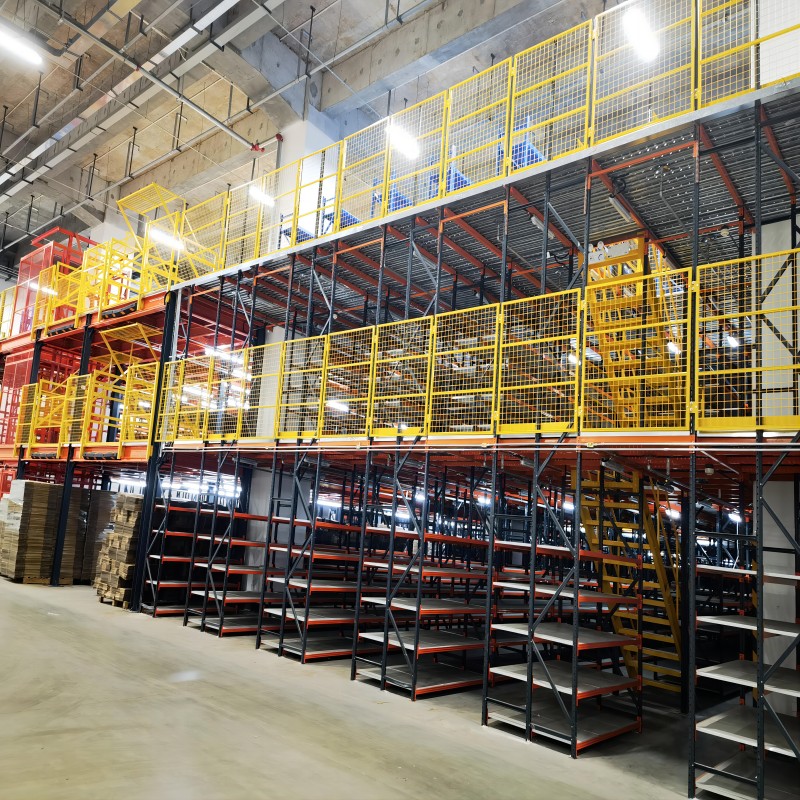

Yes, you can fully customize a Warehouse Rack for odd-sized pallets to solve these exact problems. However, the decision involves strict engineering calculations, OSHA and NFPA compliance requirements, and specific forklift compatibility checks rather than simply ordering longer beams. In this article, you will learn the exact formulas for sizing custom frames, how to maintain fire code compliance, and why professional engineering certification matters for your unique load profiles.
Customization is viable: Beams, upright depths, and bracing patterns can be engineered to fit specific load profiles.
The Depth Formula: Custom upright depth generally follows the rule of "Pallet Depth minus 6 inches" to ensure a safe 3-inch overhang on the front and back.
Compliance is mandatory: Non-standard rack configurations require Professional Engineer (PE) certification, strict adherence to height-to-depth ratios (6:1 limit), and maintained flue spaces for fire safety.
Cost vs. ROI: Custom fabrication requires higher upfront investment and longer lead times but prevents the operational bottlenecks of retrofitting standard racks to fit awkward loads.
Standard selective racking offers a fast, cost-effective solution for most facilities. Typical pricing averages $50 to $80 per standard pallet position. However, custom fabrication becomes necessary when standard systems compromise warehouse capacity or endanger employees.
You must evaluate the long-term operational ROI. Standard systems force companies to leave wide gaps between odd-sized items. They also increase the risk of fork strikes. If volume loss from ill-fitting pallets outweighs the upfront custom fabrication premium, bespoke engineering becomes the smartest choice.
You need to assess four critical dimensions before sourcing any custom frame. Your manufacturer will use these data points to engineer structural integrity.
Product Dimensions & Weight: Determine the maximum length, width, and height of your loaded pallets. You must also identify the weight distribution. Are your loads uniformly distributed (UDL) across the entire beam? Or do they apply point-loading pressure in specific spots?
Pallet Type: Examine the bottom structure of your inventory base. Does your product sit on extra-long wooden pallets, custom metal bins, or oversized corrugated skids? Odd materials require specific deck support.
Warehouse Flow: Analyze how quickly inventory moves. Does your facility require strict First-In, First-Out (FIFO) access for perishables? Some high-throughput operations demand selective access. Standard racks might restrict this flow if you force oversized pallets into double-deep configurations.
Aisle Constraints: Measure your current floor plan. Odd-sized pallets stick out further into driving lanes. You must account for clear aisle requirements.
Sometimes, an odd-sized load does not belong on a pallet rack at all. You must evaluate alternative storage mediums. If you handle extremely long materials like lumber, PVC piping, or extruded steel, a cantilever system typically offers better accessibility. Cantilever systems remove front upright columns. This design allows forklifts to place bulky items without vertical or horizontal interference. Use selective customized frames only when your loads remain distinctly palletized.
Storage Requirement | Standard Pallet Rack | Custom Pallet Rack | Cantilever Rack |
|---|---|---|---|
Load Size | Standard GMA (48"x40") | Oversized / Irregular shapes | Extra-long / Continuous items |
Upfront Investment | Low ($50-$80/position) | Medium to High | High |
Lead Time | Days (In-stock) | Weeks (Fabrication required) | Weeks |
Space Utilization | Poor for odd loads | Optimized for specific profiles | Optimized for long items |
Precision sizing prevents inventory damage and structural collapse. When dealing with bespoke load profiles, you cannot guess beam lengths or frame depths. You must use precise formulas derived from Rack Manufacturers Institute (RMI) guidelines to ensure stability.
Standard frames measure 42 inches deep to accommodate a 48-inch deep pallet. This creates a safe 3-inch overhang on the front beam and the back beam. You must replicate this overhang ratio for irregular pallets.
The overhang provides crucial structural stability. It directs the load's weight evenly across the load beams. It also offers forklift operators a placement tolerance margin. Full flush mounting limits margin for error and dramatically increases collision risks.
Depth Formula: Custom Pallet Depth - 6 inches = Target Upright Depth.
Example Calculation: If your specialized manufacturing pallet measures 60 inches deep, you need a 54-inch deep custom frame (60 - 6 = 54).
Standard load beams run 96 inches long to hold two GMA pallets. Odd-sized items throw off this math completely. You must calculate horizontal clearance carefully to avoid jammed bays.
Apply the standard RMI horizontal clearance baseline. You need a 3-inch gap between the upright frame and the first pallet. You need a 4-inch gap between two adjacent pallets. You then need another 3-inch gap between the second pallet and the opposite frame.
Width Formula: 3" (frame clearance) + Pallet Width + 4" (gap between pallets) + Pallet Width + 3" (frame clearance).
Example Calculation: If you use extra-wide 50-inch pallets, the calculation is 3 + 50 + 4 + 50 + 3. You need custom 110-inch load beams.
Customizing the vertical dimension proves equally important. Forklift operators require enough "lift-off" space to safely elevate the pallet above the beam before reversing. Without adequate clearance, operators will repeatedly clip the beams above them.
Vertical Formula: Maximum Load Height + Pallet Height + 4 to 6 inches of forklift lift-off clearance.
Best Practice: Always measure the tallest possible load. Add the height of your custom wooden or metal skid. Then add 5 inches for safe lifting margin.
Altering standard shelving dimensions triggers a cascade of structural and regulatory compliance checks. You cannot modify steel structures without addressing center of gravity shifts and local fire codes.
Modifying rack depth directly impacts the system's center of gravity. Structural engineers use the 6:1 height-to-depth ratio as a critical threshold. You divide the height of the top load beam by the depth of the upright frame.
If your custom system exceeds this 6:1 ratio, it becomes highly susceptible to overturning. Engineers must implement specialized stabilizing measures. They might specify heavy-duty baseplates, upgraded seismic anchoring bolts, or overhead cross-ties bridging the aisles. Never ignore this ratio when installing custom uprights.
The National Fire Protection Association (NFPA) strictly regulates warehouse storage. Odd-sized pallets can inadvertently block mandatory flue spaces. Flue spaces allow water from ceiling sprinklers to reach the floor during a fire.
Back-to-back custom racks must maintain a strict 6-inch minimum longitudinal flue space. If your oversized pallets feature excessive overhang, they might push into this empty void. You must design your system to physically prevent pallets from closing this gap. Additionally, oversized top-tier loads must maintain 18 to 36 inches of clearance below your ceiling sprinkler heads.
Industry guidelines explicitly forbid hacking standard setups. You might feel tempted to omit a top level to create a custom "H-frame" due to low ceiling constraints. You might consider cutting and re-welding supports in-house.
OSHA compliance requires professional validation for non-standard alterations. You must secure manufacturer sign-off or a stamped Professional Engineer (PE) drawing. A PE-stamped drawing proves your customized setup safely handles the specific seismic, weight, and dimensional loads of your facility.
Customizing your storage system forces you to evaluate your mobile fleet. Changing beam lengths and frame depths inevitably alters your aisle width requirements. Your existing material handling equipment must safely navigate the new layout.
Forklift manufacturers provide a Right Angle Stack (RAS) measurement for every vehicle. This number defines the absolute minimum distance the machine needs to turn 90 degrees and insert a load. Oversized pallets drastically change this equation because they increase the turning radius footprint.
You cannot rely on the forklift's RAS alone. You must factor in the actual length of your custom load and add an operational safety buffer.
Formula: Required Aisle Width = Forklift Manufacturer’s RAS measurement + Custom Load Length + Minimum 12-inch safety buffer.
Common Mistake: Failing to include the load length in the equation. A forklift carrying a 60-inch deep pallet requires significantly more turning space than one carrying a 48-inch pallet.
Odd-sized pallets frequently lack standard bottom boards. Some custom metal skids only feature four distinct feet. This creates a severe safety hazard on standard pallet racks, risking beam slip and total pallet collapse.
Custom configurations often require specialized heavy-duty wire mesh decking. Wire decking creates a solid platform for non-standard footprints. If wire decking impedes heavy point-loads, you must install specific steel pallet support crossbars. These crossbars securely bridge the gap between the front and rear load beams to accommodate irregular weight distribution.
Buying a bespoke solution differs greatly from purchasing off-the-shelf inventory. You must prepare your organization for longer project timelines and stricter vendor vetting processes.
Standard racking ships from stock within days. Custom fabrication requires a lengthy, multi-step process. The manufacturer must complete a structural engineering review. They must source specific steel gauges, perform specialized welding, and apply custom powder-coat painting. You should expect significantly longer lead times, often stretching from 8 to 14 weeks depending on raw material availability.
Not all suppliers handle bespoke engineering well. When you shortlist vendors for your specialized facility, you must look for specific credentials.
In-house Engineering: Ensure they possess an internal engineering team capable of producing PE-stamped drawings. They should maintain active RMI certification.
Agile Manufacturing: Look for factories capable of producing custom upright heights, non-standard diagonal bracing patterns, and highly specific beam gauges without extreme cost penalties.
Safety Integration: The vendor must supply matching safety components. Standard column protectors might not fit custom upright profiles. They should fabricate end-of-aisle guards specifically scaled to your new frame dimensions.
Customizing a warehouse rack for odd-sized pallets proves highly achievable and often operationally necessary. Off-the-shelf solutions frequently fail specialized manufacturing and logistics environments. By engaging in bespoke fabrication, you eliminate wasted space and dramatically reduce forklift handling risks.
Success ultimately hinges on precise mathematical planning. You must calculate exact load profiles, ensure proper forklift aisle clearances, and strictly adhere to fire safety regulations. Never attempt to "hack" standard racking by removing vital structural supports or ignoring excessive pallet overhang.
Your next steps should focus on data collection. Audit your current irregular pallet dimensions and calculate your required RAS aisle widths. Once you have this load profile mapped, consult a certified manufacturer to initiate a PE-stamped structural drawing for your facility.
A: Industry standards dictate a 3-inch overhang on the front and back of the horizontal beams. This ratio safely balances structural load support with enough physical tolerance for forklift operators to place the pallet without precise, pinpoint accuracy.
A: No structural modifications should occur without professional certification. Cutting, re-welding, or removing designated support beams compromises the system's engineered capacity. Upgrading to deeper, custom-fabricated upright frames is the only compliant approach.
A: If your odd-sized loads consist of exceptionally long materials like lumber, steel piping, or extruded plastics, a cantilever rack provides the best solution. It removes front upright barriers, offering a more efficient and accessible storage method than heavily customized selective racking.
