Procuring a high-capacity storage structure is a structural engineering decision masquerading as a simple purchasing task. Underspecifying your system leads to catastrophic failure risks and severe OSHA violations. Conversely, overspecifying inflates capital expenditures without improving operational yield. Generic storage solutions routinely fail under high-turnover, high-tonnage industrial conditions. You cannot rely on standard commercial racks for extreme industrial weights.
Decision-makers must seamlessly align static load math, dynamic forklift impacts, and strict facility constraints to guarantee safety. Ignoring these complex variables introduces immense physical risk to daily operations. This guide breaks down the comprehensive procurement framework for high-capacity racking. We cover everything from foundational material selection to navigating complex seismic compliance codes. Reading this ensures you make a defensible, long-term infrastructure investment. You will learn exactly how to balance structural durability and facility throughput.
Defining your exact parameters is the first critical step in procurement. Many buyers confuse standard commercial racking with true industrial systems. A true heavy duty warehouse rack handles extreme abuse daily. It confidently supports pallet loads exceeding 2,500 to 3,000 pounds per position. These extreme weights demand highly specialized upright profiles. They also require reinforced diagonal bracing to prevent buckling under stress.
You must rigorously assess the payload through a weight-to-volume matrix. Are you storing incredibly dense, compact materials? Common examples include raw steel coils, liquid drums, or cast engine blocks. Or do you store bulky, awkward loads? Lumber, large machinery, and oversized furniture require different beam configurations entirely. Volume directly dictates your structural footprint and necessary aisle spacing.
We also must definitively differentiate between static and dynamic loads. Theoretical static capacity only tells half the physical story. Forklifts place heavy pallets onto beams at high speeds. Operators sometimes accidentally strike the upright frames during rushed shifts. These dynamic impact forces drastically reduce the safe maximum weight limit. Ignoring dynamic forces often leads to sudden structural failure.
You must strictly adhere to safe deflection limits. Beams naturally bow slightly under extreme weight. The industry standard limits this deflection to the beam length divided by 180. Exceeding this limit causes permanent steel deformation. OSHA inspectors actively look for deformed beams during warehouse audits. They issue severe fines under the general duty clause for unsafe shelving.
Material selection directly drives the functional lifespan of your storage investment. You primarily choose between structural steel and roll-formed steel. Each material offers distinct advantages and specific operational drawbacks.
Structural steel utilizes highly durable hot-rolled C-channel beams. It thrives in extreme weight and high-abuse warehouse environments. Cold storage facilities and heavy manufacturing plants rely heavily on it. Manufacturers use heavy-duty bolted connections to secure the beams to uprights. These bolted connections robustly resist severe forklift impacts. Structural steel completely bypasses standard gauge measurements. It relies on solid quarter-inch or thicker channel web profiles. This immense thickness prevents buckling during accidental collisions. The primary downside is a noticeably higher upfront material cost. Freight expenses also increase due to heavier shipping components.
Roll-formed steel uses cold-rolled teardrop shapes. It works best for standardized pallet loads in controlled environments. Facilities experiencing lower forklift abuse frequently use this material. Roll-formed systems often utilize 14-gauge or 13-gauge steel profiles. It features a convenient rivet-and-slot connection system. This specific design relies on physical geometry for structural strength. It significantly lowers your initial capital expenditure. However, you face a much higher risk of damage during rough daily operations.
Many smart operators successfully choose a hybrid approach. They install durable structural steel uprights on the bottom storage levels. Forklifts hit lower levels most often during picking routines. Then, they install roll-formed beams for the upper elevated tiers. This intelligent strategy balances your overall budget while maximizing ground-level durability.
Material Comparison Matrix
| Feature | Structural Steel | Roll-Formed Steel |
|---|---|---|
| Connection Type | Heavy-duty bolted | Rivet-and-slot (Teardrop) |
| Impact Resistance | Extremely High | Moderate |
| Adjustability | Requires tools, slower | Tool-less, highly adaptable |
| Best Application | Cold storage, heavy manufacturing | Standard logistics, retail distribution |

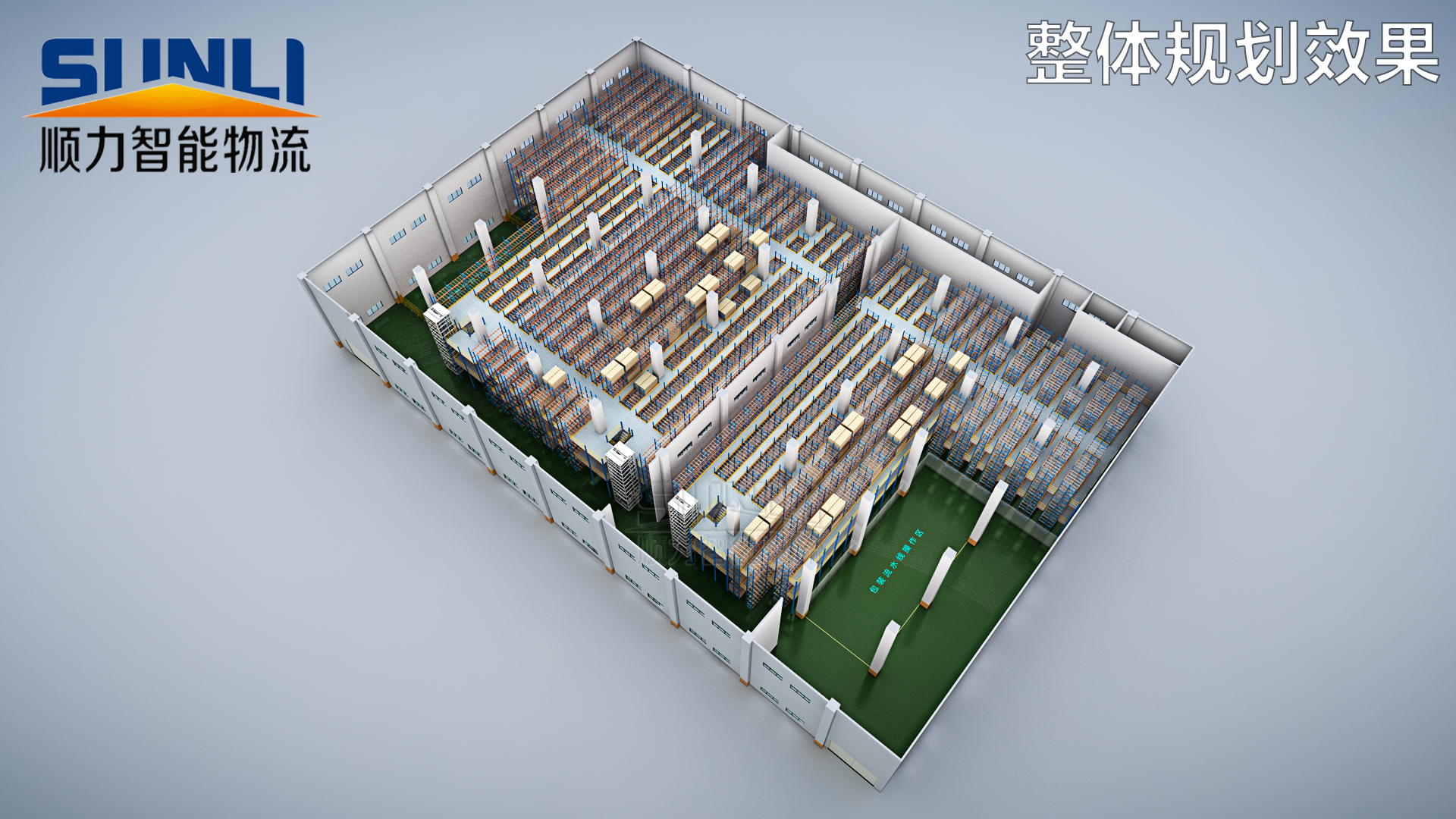

Your selected rack configuration must flawlessly match your facility throughput goals. Storage density and physical accessibility constantly compete against each other.
Selective pallet racking offers a familiar baseline standard for most facilities. It provides 100% SKU accessibility at all times. Forklift operators can pick any pallet immediately without moving obstacles. However, it delivers the lowest overall storage density per square foot. This particular setup suits high-mix, low-volume heavy goods perfectly.
Aisle spacing drastically alters your selective storage capacity. Standard wide aisles require 12 feet of clearance. Narrow aisle setups reduce this to 9 feet. Very Narrow Aisle (VNA) systems compress aisles down to 6 feet. However, VNA setups demand specialized turret trucks. You cannot use standard counterbalance forklifts in VNA configurations.
High-density setups offer an entirely different operational flow. Systems like drive-in or push-back racking trade immediate accessibility for massive space gains.
Both configurations require rigorous structural engineering. The frames must withstand significant internal stress from loaded equipment.
You might also consider building upwards instead of outwards. Integrating Heavy-Duty Mezzanine Racking maximizes vertical cube space brilliantly. It converts empty upper warehouse zones into load-bearing storage. You can even create elevated employee workspaces safely above the active floor level. Evaluating this advanced option requires stringent column-spacing analysis. You must select specialized decking materials carefully. Bar grating and solid B-deck surfaces provide necessary weight distribution. Furthermore, you must install integrated safety pivot gates. These structural gates protect workers during heavy load transfers from forklifts.

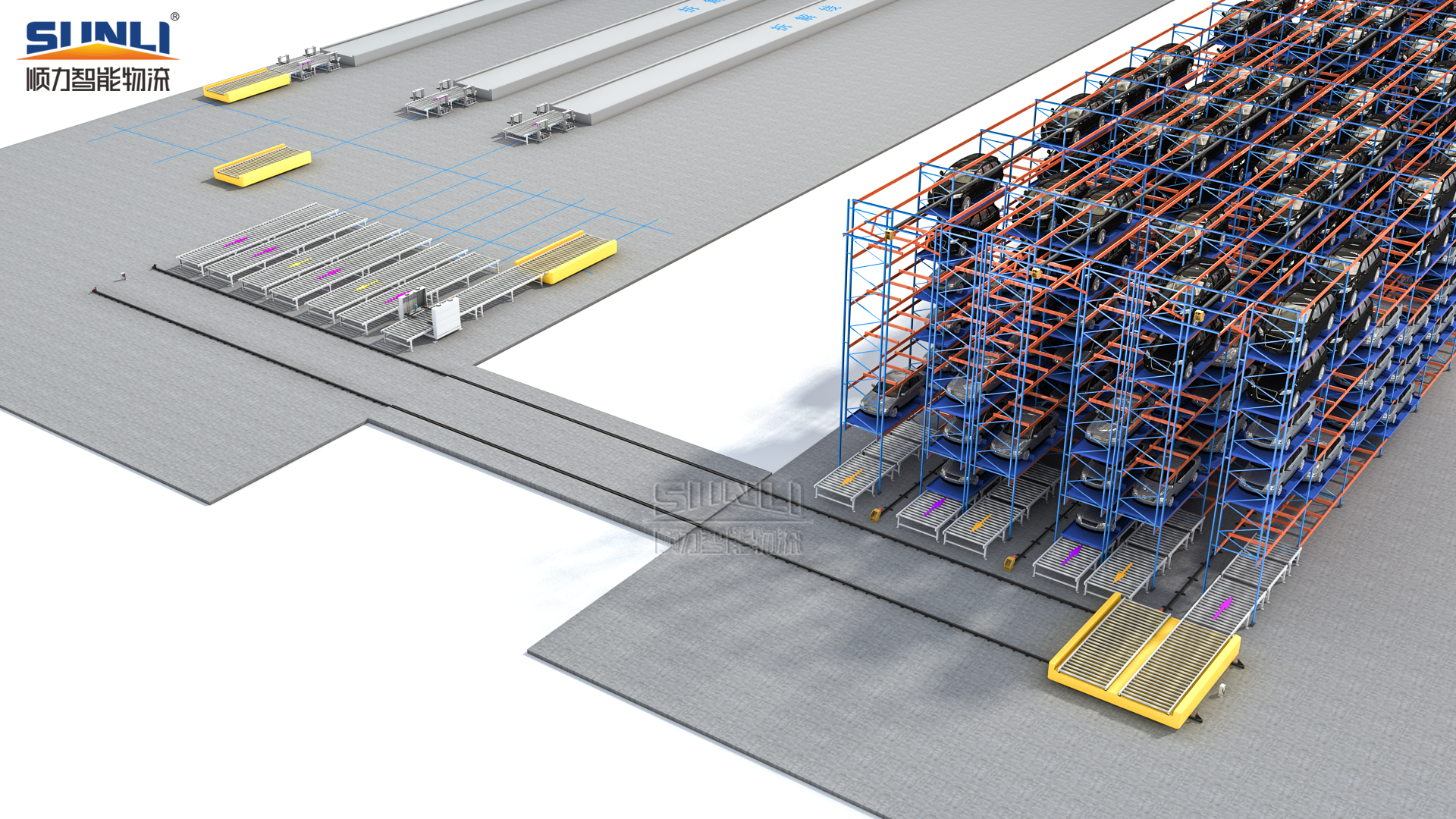

Do not ignore the hidden physical constraints of your building. A heavy storage system is only as strong as its concrete foundation. Slab capacity dictates everything about your vertical limits. You must verify the concrete slab thickness meticulously before buying. Heavy loads often require a six-inch minimum concrete thickness. You also need to verify the exact compressive strength in PSI. Weak concrete causes floor anchor bolts to pull out easily under tension.
Floor anchors secure the entire structure rigidly to the ground. Installers typically use heavy-duty wedge anchors for standard concrete slabs. Problematic floors often require specialized epoxy anchors. Epoxy chemically bonds the threaded rod to the concrete interior. This chemical bond provides massive resistance against vertical pull-out forces.
Geographic realities also introduce strict seismic zone engineering requirements. Facilities located in earthquake-prone regions face stringent local building codes. Storage structures in these zones demand substantially larger base plates. They also require tighter diagonal bracing patterns within the upright frames. You must secure Professional Engineer (PE) stamped calculations. Local municipalities explicitly mandate these stamps for legal structural compliance before installation.
Finally, you must evaluate your existing Material Handling Equipment (MHE). Your current forklifts must physically match the new racking dimensions.
If your forklift cannot safely reach the top tier, the system fails. Always design the physical structure around your existing equipment capabilities. Never force heavy equipment to operate in dangerously tight aisles.
Selecting the right manufacturing partner actively mitigates severe long-term risks. You should always demand highly detailed engineering drawings from vendors. Never accept generalized load tables for custom structural storage projects. Real industrial applications require precise site-specific structural math. Insist on PE-stamped designs mapped specifically to your exact facility address. This essential step transfers the engineering liability directly to qualified structural professionals.
You must also verify specific RMI (Rack Manufacturers Institute) certification. Reputable vendors proudly display the official R-Mark on their documentation. This certification confirms they test fabrication materials to objective quality baselines. It guarantees the structural steel meets strict metallurgical safety standards. Avoid manufacturers who cannot provide valid independent testing data. Uncertified steel often buckles under continuous heavy loads.
Do not evaluate proposals based solely on upfront unit pricing. Instead, heavily evaluate the long-term flexibility and warranty terms provided. You might need to reconfigure beam levels later as your inventory changes. Understand exactly how easily the proposed system adapts to new SKU profiles. Review the manufacturer warranty regarding damaged upright replacements. Strong warranties indicate a vendor trusts their internal fabrication process deeply. Ask the vendor about guaranteed lead times for emergency replacement parts.
Thoroughly investigate the vendor's specialized installation team. Great steel installed poorly still ultimately fails. Ensure the vendor uses highly experienced installation crews. These crews must understand how to properly shim uprights on uneven warehouse floors. Out-of-plumb racks lose significant weight capacity immediately. Plumbness must remain within half an inch per ten feet of vertical height.
Selecting a high-capacity storage system requires careful daily risk mitigation. It also demands precise spatial optimization strategies for long-term growth. The right choice balances rigid structural integrity with smooth operational flow. It protects your valuable inventory and your warehouse personnel simultaneously. Proper planning prevents catastrophic structural collapses and costly operational bottlenecks.
Take immediate action by auditing your current concrete slab capacity today. Gather the exact physical dimensions and maximum weights of your heaviest standard pallets. Document the mechanical specifications of your existing forklift fleet. Then, request an onsite survey from an RMI-certified system integrator. Do this before you ever request a formal pricing bid. Thorough upfront preparation ensures you build a safe, highly efficient storage infrastructure.
A: It varies entirely by structural design and material selection. Standard heavy-duty structural bays can easily exceed 30,000 pounds per upright frame. However, this assumes the beam span and the concrete slab adequately support it. Always consult a certified structural engineer to determine your exact safe load limits.
A: They share a direct inverse relationship. Longer beams significantly reduce the maximum weight capacity per level. For example, a 144-inch beam holds much less than a 96-inch beam of the same profile. Longer spans naturally introduce higher deflection risks under extremely heavy pallet loads.
A: Yes, you need permits in almost all commercial and industrial jurisdictions. Municipalities strictly require PE-stamped engineering drawings before approving construction. These drawings ensure your new system complies with strict high-pile storage rules. They also verify proper safe integration with overhead fire suppression sprinkler codes.
A: You must conduct formal structural inspections annually using a certified third party. Additionally, schedule monthly internal visual audits with your warehouse managers. Your team should routinely check for deflected beams and sheared floor anchor bolts. Always look for fresh paint transfer, as it strongly indicates recent forklift impacts.
