Inefficient cubic space utilization acts as a hidden financial drain on your daily operations. Selecting the wrong racking infrastructure creates severe operational bottlenecks that cripple throughput. You lose valuable time, waste expensive floor space, and drain capital resources. Warehouse managers face a constant central conflict when designing a facility. You must balance maximum storage density with immediate SKU accessibility. At the same time, you have to strictly adhere to complex safety regulations and manage capital expenditures effectively. Solving this requires a highly systematic evaluation process. You need to analyze facility constraints, inventory profiles, and structural engineering requirements before buying steel. This careful approach helps you select a scalable, future-proof pallet rack warehouse solution. The right system transforms your warehouse from a static storage room into a dynamic fulfillment engine, ensuring every square foot works hard for your bottom line.
Building layout dictates what you can actually install inside your facility. Floor slab thickness is the absolute starting point for any structural project. Concrete PSI ratings determine the point-load bearing capacity of your floor. If the slab cannot support the concentrated weight of fully loaded upright frames, the concrete will crack and the structure will fail. Engineers routinely require core drilling tests to verify the integrity and exact thickness of older concrete floors, as well as the stability of the soil subgrade underneath. You cannot guess these numbers.
Clear ceiling height sets your maximum vertical storage limit. You must measure to the lowest hanging obstruction, not the roof deck. Subtract fire suppression sprinkler clearances, HVAC ducts, and lighting fixtures from this total height. Building column spacing represents another hard constraint. A standard 50-by-50-foot column grid forces you to design your rack rows around the building's structural supports. You must bury these building columns inside the rack flue spaces. If you miscalculate, a building column will block your forklift aisle and ruin your traffic flow.
You must calculate the total number of SKUs versus the total number of pallets per SKU. This specific ratio drives your entire density and accessibility strategy. Standardizing pallet dimensions ensures safe and efficient rack engineering. The standard GMA pallet measures 48 inches deep by 40 inches wide. When you place a 48-inch deep pallet on a 42-inch deep rack upright, you get exactly 3 inches of overhang on the front and back. This overhang allows forklift operators to visually confirm the pallet rests securely on both beams.
Calculate the maximum weight distribution per beam level to prevent dangerous steel deflection. A beam pair rated for 5,000 pounds assumes a uniformly distributed load. If you place a heavy, concentrated point load in the dead center of that beam, it will bow and eventually collapse. Account for the variety of pallet materials used in your daily operations. Wood, plastic, and metal pallets behave very differently on steel racks. Plastic pallets often lack bottom boards, requiring heavy-duty wire decking or specialized cross-bars to prevent them from slipping through the beams.
Analyze your specific picking profiles before finalizing any warehouse layout. Full pallet in-and-out operations require entirely different rack structures than case picking operations. Rack design directly impacts your pick path efficiency and overall labor productivity. Good ergonomics reduce physical strain on workers and prevent slow picking bottlenecks. Keep your fastest-moving SKUs in the golden zone—between waist and shoulder height—to maximize pick speeds.
Evaluate your material handling equipment capabilities alongside your rack design. Match your forklift reach heights to your proposed top beam levels, factoring in the extra 6 inches of lift required to clear the beam during pallet extraction. Ensure your forklift turn radii fit comfortably within your proposed aisle dimensions. A high-density system fails completely if your current counterbalanced forklifts cannot physically turn around in the aisles. Workflow dynamics must dictate the physical layout of your storage media, not the other way around.
Selective racking remains the undisputed standard across the material handling industry. It offers 100% SKU selectivity for forklift operators. You can reach every single pallet without moving another one out of the way. This makes it the absolute best fit for high-SKU, low-volume environments where rapid access is mandatory. You install these systems in single-deep rows placed back-to-back.
You can upgrade to a double-deep configuration to optimize your floor space. Double-deep setups place two single rows together, requiring a specialized deep-reach forklift to access the rear pallet. This significantly increases storage density by eliminating alternating aisles. The primary trade-off with standard selective systems is the massive consumption of floor space. You dedicate significant square footage to open aisle space. However, the speed of access often outweighs the loss of raw storage density.
| Feature | Single-Deep Selective | Double-Deep Selective |
|---|---|---|
| SKU Selectivity | 100% Immediate Access | 50% Immediate Access |
| Storage Density | Low to Medium | High |
| Equipment Required | Standard Counterbalance | Deep-Reach Forklift |
| Inventory Routing | Random Access | LIFO per lane |
These systems eliminate traditional aisles entirely. They allow material handling equipment to drive directly into the rack structure itself. Pallets rest on continuous horizontal rails running the depth of the system. They are ideal for low-SKU, high-volume inventory storage. Cold storage facilities and seasonal goods warehouses rely heavily on this design to maximize expensive refrigerated footprint.
Drive-in uses Last-In, First-Out routing. You load and unload from a single entry point. Drive-thru allows First-In, First-Out routing by opening both ends of the system, though this requires an empty aisle on both sides. Address implementation risks carefully before choosing this dense storage method. These structures have a high vulnerability to forklift impact damage because operators drive inside the steel frame. You need strict driver safety protocols and heavy-duty column protectors to prevent catastrophic rack failure.
Dynamic systems use gravity to move pallets automatically through the storage lanes. Push back racks utilize a series of nested carts sitting on inclined rails. When you load a new pallet, the forklift pushes the existing pallet backward. This offers excellent LIFO storage suitable for medium turnover operations, typically ranging from two to six pallets deep.
Pallet flow racks provide strict FIFO storage. You load pallets on one side, and they roll down polycarbonate wheels or steel rollers to the picking face on the opposite side. This is mandatory for perishable goods, pharmaceuticals, or date-sensitive materials. Both systems rely heavily on gravity and engineered tracks. You face a much higher initial capital investment and increased mechanical maintenance costs over time due to the moving parts. You must regularly inspect speed controllers and replace broken wheels to keep the lanes flowing.
Cantilever structures completely lack front columns in their design. This open layout accommodates non-standard, bulky, or extra-long loads that cannot fit inside a standard rack bay. Lumber, steel extrusions, furniture, and PVC piping fit perfectly on these extended arms. The base of a cantilever rack must equal or exceed the length of the arms to prevent the entire structure from tipping forward under load.
Load deflection represents a major consideration when engineering cantilever arms. Arm-capacity engineering must be precise to prevent sagging under heavy weights. For standard heavy pallets, a heavy duty pallet rack system utilizes thicker steel gauges and reinforced bracing. This ensures structural integrity under extreme weight and high-throughput conditions. Structural steel is the preferred material for these demanding applications, easily handling the abuse of heavy industrial environments.
Roll-formed teardrop steel dominates standard capacity warehouse environments. Manufacturers create it by cold-rolling flat steel coils into tubular or C-shapes and punching teardrop holes down the face. It offers lower upfront costs and allows for rapid beam reconfiguration without tools. You simply tap the beam clips into the teardrop holes and engage the safety pins.
Structural steel uses heavy hot-rolled C-channels and requires heavy bolted connections instead of teardrop punch holes. It is absolutely necessary for high-impact zones, freezer applications, and extreme load capacities. Assess environmental durability factors carefully when choosing your steel type. Cold storage, outdoor exposure, or corrosive materials require specific protective finishes. You must specify hot-dipped galvanized steel or specialized powder-coated finishes to prevent aggressive rust and structural degradation.
When designing your pallet rack storage layout, cubic space utilization measures how efficiently you use both vertical and horizontal space. Transitioning from standard aisles to narrow aisle configurations drastically impacts your daily operations. Very narrow aisle setups maximize density by shrinking the empty space between racks down to the absolute minimum.
However, you cannot run standard equipment in these tight spaces. They require specialized wire-guided turret trucks to operate safely. You trade standard accessibility and equipment flexibility for maximum storage density. Every inch of reduced aisle width increases your total pallet positions, but it also increases your reliance on specialized, single-purpose machinery.
| Aisle Configuration | Average Aisle Width | Equipment Required | Density Level | Accessibility |
|---|---|---|---|---|
| Standard Aisle | 11 - 13 Feet | Standard Counterbalance Forklift | Low | 100% Selectivity |
| Narrow Aisle (NA) | 8 - 10 Feet | Reach Truck | Medium | High Selectivity |
| Very Narrow Aisle (VNA) | 5.5 - 7 Feet | Turret Truck / Order Picker | High | Restricted Selectivity |
Evaluate the modularity of the system before making a final purchase. You want to easily add on or reconfigure components as your inventory profile changes. If you plan to raise your roof in the future, ensure your base uprights are engineered to handle the additional weight of spliced extensions. Discuss the system's ability to integrate with future automation technologies.

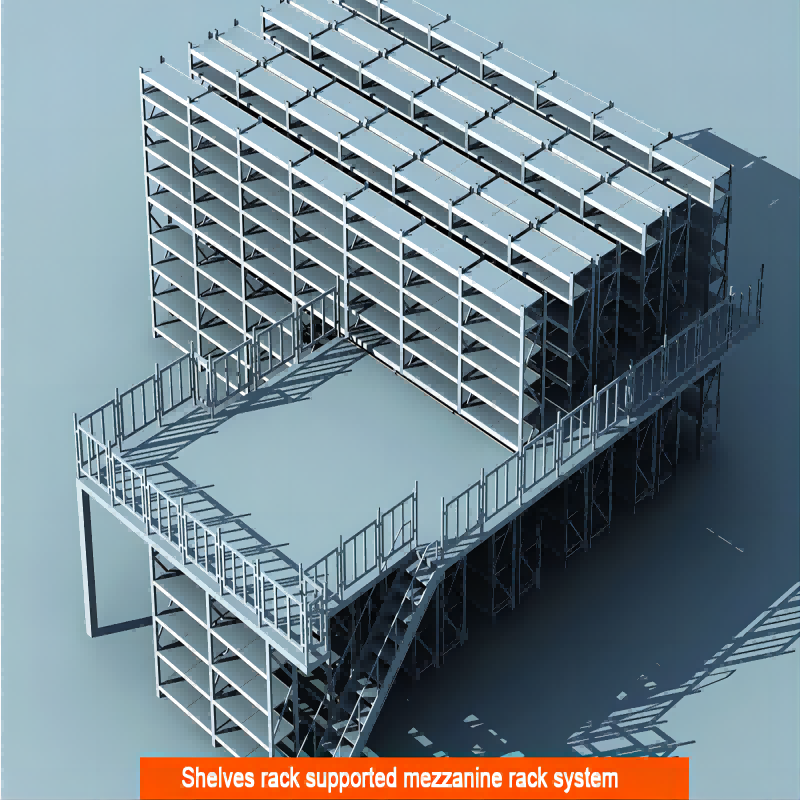

Automated Storage and Retrieval Systems require incredibly precise rack tolerances. A standard roll-formed rack might flex too much for a robotic crane to accurately place a pallet. Multi-level pick modules demand robust structural foundations to support human traffic, heavy conveyors, and dynamic loads. Choose a pallet rack storage system that adapts and grows with your operational needs. Future-proofing your warehouse prevents costly tear-downs and complete system replacements.
Rack Manufacturers Institute certifications guarantee structural reliability and engineering excellence. Look for the R-Mark certification on your proposed system. Local seismic zone requirements dictate specific engineering standards for your geographic location. A rack built for Ohio will fail building inspections in California.
Seismic zones determine base plate sizing and the required depth for concrete anchors. High seismic areas require massive 8-by-8-inch base plates and heavy-duty wedge anchors driven deep into the slab. Seismic zones also dictate steel gauge thickness and the density of the diagonal bracing patterns. You cannot ignore these regulations when designing a high-pile storage system. Failure to comply risks catastrophic structural collapse during ground movement. Always have a licensed structural engineer stamp your plans before installation begins.
Fire codes mandate strict longitudinal and transverse flue spaces within your racks. You must maintain a 6-inch longitudinal gap between back-to-back rows and a 3-inch transverse gap between pallets side-to-side. These specific gaps allow heat venting and ensure proper sprinkler water penetration down to the floor level. If you push a pallet too far back and block the flue, the fire marshal will cite your facility.
High-pile storage environments almost always trigger requirements for in-rack sprinkler systems. You must integrate these fire safety measures during the initial design phase. Retrofitting sprinklers into an existing rack structure requires draining the system, cutting pipe inside the racks, and halting all warehouse operations. Work closely with your local fire marshal to ensure full compliance before ordering steel.
Installation downtime represents a major operational risk for active fulfillment centers. You need massive floor space just to stage the steel before standing it up. Phase your implementation carefully to keep daily operations running smoothly. Tear down and rebuild one zone at a time.
Mixing incompatible rack components from different manufacturers is a severe safety hazard. Do not do this without explicit written engineering approval. Even if teardrop clips seem to fit into another brand's upright, the locking mechanisms and load capacities differ wildly. Always consult a certified warehouse pallet rack supplier before modifying existing structures. Professional installation crews mitigate the risk of improper anchoring. They use steel shims under the base plates to ensure every single upright is perfectly plumb before tightening the anchor bolts.
Contrast upfront material and freight costs with long-term labor efficiency gains. A cheaper, high-density rack layout might drastically slow down your daily picking speeds. If it takes a forklift driver five minutes to dig out a buried pallet, your labor costs will skyrocket and erase any savings from the cheaper steel.
Factor in the hidden costs of requiring specialized material handling equipment. Servicing denser rack configurations often requires purchasing expensive wire-guided turret trucks and installing floor guidance wires. Calculate the ongoing maintenance costs over the expected lifespan of the racks. Dynamic systems require regular track lubrication, wheel replacement, and debris clearing. A true return on investment analysis looks at labor, equipment, and maintenance combined.
Establish strict criteria for evaluating potential material handling partners. Demand turnkey capabilities including CAD design and certified structural engineering. They must offer local permitting assistance, as navigating city building departments requires specialized experience. They should deploy professional, insured installation crews.
Assess the value of comprehensive warranty terms on both the structural steel and any moving parts in dynamic systems. Look for partners offering ongoing post-installation rack inspection services to catch forklift damage before it causes a collapse. Reliable industrial pallet storage racks require expert installation and continuous structural monitoring. A good supplier acts as a long-term operational consultant, not just a steel vendor.
No single rack type is universally superior for every warehouse environment. The most efficient facilities utilize a hybrid approach to maximize space. Match specific rack types to distinct SKU velocity profiles within the same building. Fast movers need dynamic flow, while slow movers fit perfectly in selective racks.
A: Capacities vary widely based on engineering, but heavy-duty systems typically support between 3,000 and 6,000 pounds per pallet position. Upright frames can be engineered to hold upwards of 40,000 pounds total, depending on vertical beam spacing and steel gauge thickness.
A: Choose roll-formed steel for standard warehouse environments where flexibility and cost-efficiency are priorities. Opt for structural steel in high-volume, heavy-load, or harsh environments like cold storage, where the risk of forklift impact is significantly higher.
A: Standard counterbalanced forklifts typically require aisles between 11 and 13 feet wide. Narrow aisle setups reduce this requirement to 8 to 10 feet, while very narrow aisle systems can operate in spaces as tight as 5.5 to 7 feet.
A: Seismic zones dictate stricter engineering requirements to withstand ground movement. This includes larger base plates, deeper concrete anchors, thicker steel gauges, and reinforced bracing patterns to prevent structural collapse during an earthquake.
A: No. Mixing components from different manufacturers is a severe safety hazard. Even if pieces appear to fit together perfectly, their engineered load capacities differ. Always obtain professional engineering approval before combining different rack systems.
A: FIFO (First-In, First-Out) ensures the oldest inventory is picked first, making it mandatory for perishables. LIFO (Last-In, First-Out) means the most recently loaded pallet is picked first, which works well for non-perishable, high-volume goods.
A: Fire codes generally require a minimum 6-inch longitudinal flue space between back-to-back racks and a 3-inch transverse flue space between pallets. This allows for proper heat venting and ensures sprinkler water can reach lower storage levels.
