H1 Title

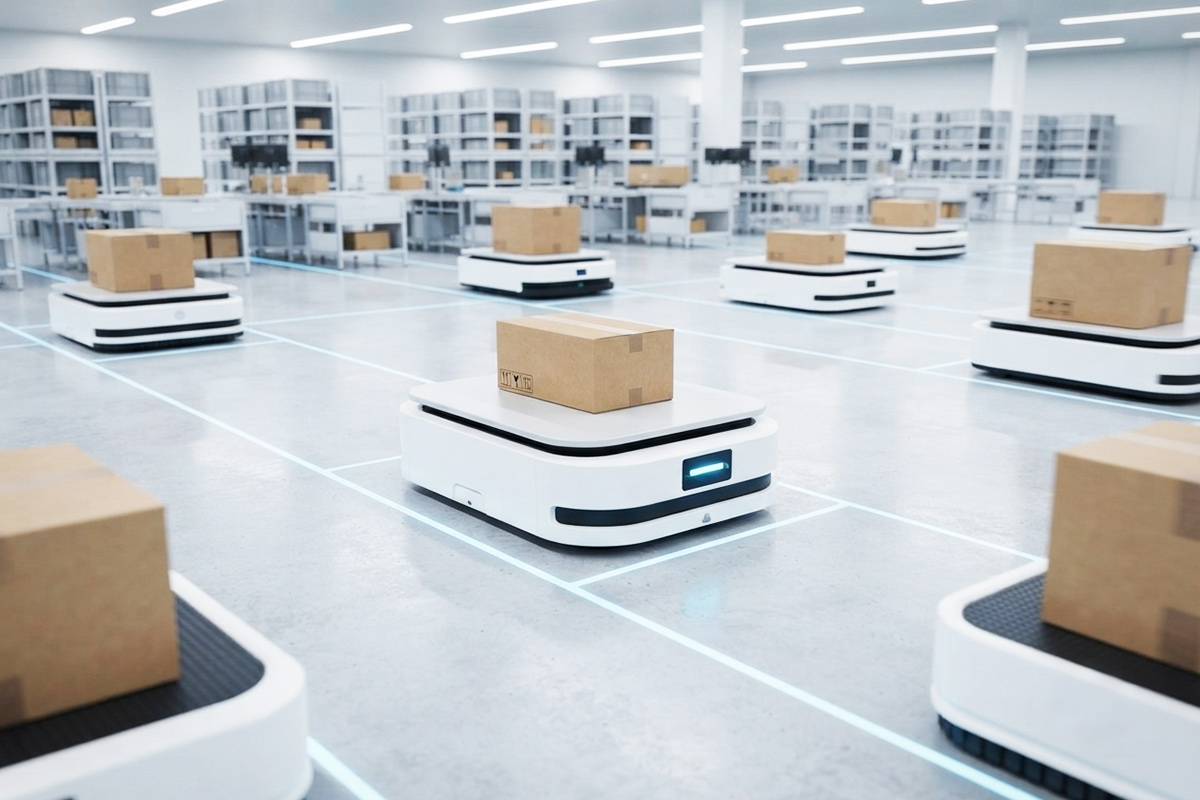

AGV Material Handling Solution for Automated Warehouse Logistics
Subtitle
SUNLI provides a full range of automated guided vehicle (AGV) solutions - including latent AGV, forklift AGV, tugger AGV, and QR code AGV - integrated with RCS scheduling systems for intelligent material handling across factory internal logistics, warehouse transport, line-side delivery, and finished goods transfer.
Target Keywords
AGV solution, warehouse AGV, automated material handling solution, AGV manufacturer, latent AGV, forklift AGV
· Labor shortage and rising costs
Difficulty recruiting and retaining warehouse and factory floor labor, with wages increasing annually.
· Inefficient internal transport
Manual forklift operations create bottlenecks, especially during shift changes and peak production periods.
· Safety hazards
Human-driven forklifts in mixed traffic areas increase collision risk and workplace accidents.
· Inflexible routing
Fixed conveyor systems cannot adapt to layout changes or product mix variations.
· Lack of traceability
Manual material handling provides no real-time visibility into WIP location and movement.
The AGV material handling solution comprises:
· Latent AGV (Single/Double-Directional)
Low-profile design for under-cart traction, rated load 500–1,500 kg, magnetic stripe or QR code navigation, positioning accuracy ±10 mm.
· Forklift AGV (Laser Navigation)
Autonomous pallet handling with load capacity up to 2,000 kg, laser SLAM navigation enabling route modification without physical guidepaths.
· Tugger AGV
Multi-cart towing for batch material transport, load capacity up to 3,000 kg, suitable for long-distance intra-factory logistics.
· QR Code AGV
Grid-based navigation using floor-mounted QR codes, enabling flexible path planning and multi-vehicle coordination.
· RCS Scheduling System
Multi-robot fleet management with traffic control, task allocation, charging scheduling, and WMS/MES interface, supporting 100+ AGVs in concurrent operation.
· 24/7 Operation
Intelligent charging scheduling enables up to 23.5 hours of continuous daily operation, approaching round-the-clock productivity.
· Labor Reduction
Replacing manual forklifts and carts with AGVs can reduce material handling personnel by over 50%, effectively lowering labor costs.
· Positioning Accuracy
Navigation accuracy reaches ±10 mm (magnetic/QR) or ±20 mm (laser SLAM), ensuring high-precision positioning during operations.
· Safety Improvement
Equipped with obstacle detection and mechanical collision-prevention systems, the units achieve zero-collision operations in controlled environments, significantly enhancing safety.
· Throughput Capacity
A single AGV can transport 30-60 pallets per hour, with specific efficiency depending on route planning and operating distance.
· Fleet Coordination
The RCS scheduling system coordinates the simultaneous operation of over 100 AGVs, enabling large-scale fleet management.
· ROI Period
The return on investment (ROI) period for multi-AGV deployments is typically 2-4 years, driven primarily by labor savings and reduced safety risks.
· Electronics Manufacturing
Component line-side delivery, WIP transfer, finished goods transport
· Automotive
Parts kitting, JIT delivery to assembly lines, empty container return
· E-commerce & Retail
Goods-to-person picking, order consolidation, parcel sortation
· Food & Beverage
Raw material supply, packaging line feeding, finished goods staging
· Pharmaceutical
GMP-compliant material flow with full traceability
· Home Appliances
Large-item handling, assembly line feeding, warehouse-to-dock transport
Latent AGV (single-directional, double-directional)
Forklift AGV (laser navigation)
Tugger AGV
QR Code AGV
RCS Multi-Robot Scheduling System
AGV Charging Stations
Deployed multiple AGV units for automotive metal stamping line-side material supply. The AGV fleet operates in coordination with production rhythm, delivering raw materials and removing finished stampings with RCS scheduling integrated to the factory MES.
AGV cluster integrated with four-way shuttle system, cross-floor sorting conveyor, and customized stacker crane ASRS. The AGV group handles inter-zone material flow while RCS coordinates with the overall warehouse control system for end-to-end automation.
Q: How do I choose between magnetic guidance, QR code navigation, and laser navigation?
A: Magnetic guidance offers the highest positioning accuracy (±10 mm) and lowest cost for fixed routes. QR code navigation provides moderate flexibility for route changes. Laser SLAM navigation enables the greatest layout flexibility with no physical guidepath installation, ideal for dynamic environments.
Q: What load capacity should I choose?
A: Load capacity depends on pallet weight, cart weight, and safety margin. Latent AGVs typically handle 500–1,500 kg; forklift AGVs handle up to 2,000 kg; tugger AGVs tow up to 3,000 kg. SUNLI engineers assess your material specs and recommend optimal configurations.
Q: Can AGV routes be adjusted after deployment?
A: Yes. For QR code and laser navigation AGVs, routes can be reprogrammed via the RCS software without physical modifications. Magnetic guidance AGVs require guidepath relayout for route changes but offer superior stability for high-frequency fixed routes.
Q: How does the RCS system manage multi-AGV traffic?
A: The RCS implements zone-based traffic control, deadlock prevention algorithms, and dynamic route optimization to manage 100+ AGVs simultaneously, ensuring collision-free operation and optimal task allocation.
