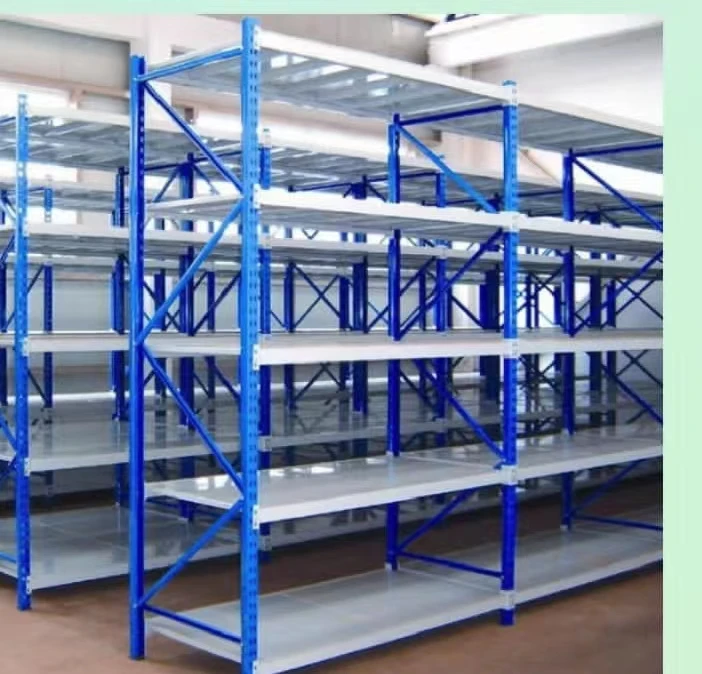

Disorganized floor space creates a cascading series of operational burdens that directly impact facility throughput. When inventory sits directly on the concrete slab, material handling equipment must navigate chaotic aisles. This leads to excessive travel times, battery drain, and elevated safety hazards. Poor inventory visibility forces operators into a constant state of searching. The inability to utilize vertical clear height artificially caps facility capacity. Scaling operations inevitably hit a hard bottleneck under these conditions. Pick-path travel times increase, and inventory shrinkage rises due to floor-level damage. Accommodating seasonal volume surges becomes impossible without securing additional square footage. Transitioning from block stacking to an engineered infrastructure is a necessary operational decision that dictates long-term scalability. By implementing pallets storage racks, warehouse managers transform wasted airspace into active inventory slots. This structural upgrade fundamentally alters how goods flow through the facility.
A failing warehouse layout broadcasts clear operational symptoms long before it reaches total gridlock. High pick-path travel times are the most immediate indicator. When operators spend more time driving between disparate locations than actively picking orders, the layout actively works against fulfillment goals. Frequent stockouts occurring despite WMS data showing on-hand inventory point to severe slotting disorganization. Goods become buried behind other pallets, rendering them inaccessible during peak picking hours.
Block stacking creates inherent limitations that throttle supply chain velocity. Stacking pallets directly on top of one another inevitably leads to crush damage for bottom-tier goods. This is especially true when dealing with corrugated packaging or irregularly shaped items. This method imposes strict height limitations dictated by load stability rather than ceiling height, leaving massive volumes of vertical space entirely empty. Floor stacking makes enforcing First-In, First-Out (FIFO) rotation nearly impossible. Older inventory becomes trapped at the back of the stack, leading to expired goods, obsolete stock, and severe inventory degradation.
Evaluating a potential infrastructure upgrade requires establishing strict baseline performance metrics. Storage density, calculated as pallets per square foot, provides a clear view of footprint utilization. SKU accessibility percentage determines how many unique product lines can be picked without moving obstructing loads. Throughput velocity measures the speed at which goods move from receiving to shipping. Order cycle time tracks the duration from order drop to final staging. These metrics form the foundation for evaluating any structural layout changes.
Operational constraints dictate the boundaries of the system design. You must evaluate several physical factors before selecting a framework:
The selective pallet racking system remains the most widely deployed configuration in modern warehousing due to its absolute versatility. It provides 100% SKU selectivity, meaning operators can access any individual pallet without moving another. This system offers high configurability, allowing facilities to adjust beam levels easily to accommodate changing load heights. It integrates with standard counterbalance forklifts and reach trucks, requiring minimal specialized equipment training for operators.
The primary trade-off for total accessibility is lower overall storage density. Because every row requires an adjacent operating aisle, a significant portion of the floor plan is dedicated to MHE navigation rather than actual storage. This configuration excels in environments managing highly varied product lines and operations requiring strict FIFO inventory management where rapid, unhindered access to diverse SKUs is the top priority.
Drive-In and Drive-Thru systems maximize density by eliminating standard operating aisles. Forklifts drive directly into the storage bays to deposit and retrieve loads on continuous support rails. This configuration is engineered for low-SKU, high-volume operations utilizing Last-In, First-Out (LIFO) rotation. These systems are heavily utilized in cold storage environments, where maximizing the chilled footprint is imperative to maintain operational efficiency. By condensing the storage cube, facilities can store massive quantities of identical products in a highly compressed area.
Push-Back racks balance high density with moderate selectivity. Pallets are loaded onto nested carts that ride on inclined rails. When a new pallet is deposited, it pushes the existing pallets backward. When a pallet is removed, gravity brings the next one forward to the aisle face. Typically configured two to six pallets deep, this LIFO system reduces aisle space while maintaining distinct SKU lanes. It offers better accessibility than Drive-In setups without sacrificing major density.
Pallet Flow racks utilize gravity-driven roller lanes to create a strict FIFO storage mechanism. Pallets are loaded at the rear induction aisle and glide forward on wheeled tracks to the front picking face. Speed controllers and braking systems ensure safe descent. This configuration is ideal for perishable goods, date-sensitive materials, and high-turnover staging lanes where rapid, automated inventory rotation is absolutely mandatory.
| System Type | Selectivity | Storage Density | Inventory Rotation | Best Application |
|---|---|---|---|---|
| Selective Racking | 100% | Low to Medium | FIFO | High SKU counts, varied product lines |
| Drive-In Racking | Low | Very High | LIFO | Low SKU counts, bulk storage, cold rooms |
| Push-Back Racking | Medium | High | LIFO | Medium SKU counts, batch storage |
| Pallet Flow Racking | Low to Medium | Very High | FIFO | Perishables, date-sensitive goods |
Selecting the right steel profile is a fundamental engineering choice. Roll-formed steel, recognized by its teardrop punch hole design, is highly adaptable and suitable for the majority of standard warehouse applications. Structural steel, manufactured from hot-rolled C-channels, offers superior impact resistance. Heavy duty pallet racks built from structural steel are mandatory in high-traffic zones, heavy-load applications, and environments where forklift collisions are a persistent operational hazard.
Specialized adaptations expand capabilities beyond standard GMA pallets. Cantilever racks utilize central towers and protruding arms to store oversized, long goods like lumber, steel piping, and furniture. Very Narrow Aisle (VNA) configurations compress aisle widths down to 60 inches, requiring specialized wire-guided order pickers or turret trucks to navigate. For facilities pushing toward total automation, racking structures can be engineered to integrate directly with Automated Storage and Retrieval Systems (AS/RS). These require exceptionally tight manufacturing tolerances and robust structural rigidity to support robotic shuttles and cranes.
Evaluating a layout requires a precise framework for calculating cubic volume utilization. This involves measuring the total available vertical space against the actual volume occupied by stored goods. Before installation, floor stacking might utilize only 20% of the available cube. After an engineered installation, that utilization rate can exceed 80%. The goal is to minimize honeycombing—the empty, unusable spaces within a storage grid—by matching the physical structure to the exact dimensions of the inventory.
Narrowing aisles is a direct method to increase the rack footprint, but it fundamentally alters equipment requirements. Moving from a standard 12-foot aisle to a 9-foot narrow aisle allows for additional rack rows within the same square footage. This shift mandates the deployment of specialized reach trucks capable of operating in tighter confines. The decision to compress aisles must balance the gain in storage locations against the operational constraints of the required material handling equipment.
Technical evaluation of structural components prevents catastrophic failure. Beam capacities are determined by the steel gauge, the profile shape, and the unsupported span length. Upright frame capacities depend on the column dimensions, the bracing pattern, and the vertical distance between beam levels. Increasing the distance between beams increases the unbraced length of the column, which significantly reduces the overall weight capacity of the frame. Every configuration must be strictly evaluated against the heaviest potential load.
| Beam Length (Inches) | Typical Profile Face (Inches) | Estimated Capacity per Pair (Lbs) | Pallet Capacity (Standard 40"x48") |
|---|---|---|---|
| 96" | 3.5" to 4.0" | 4,000 - 5,000 | 2 Pallets |
| 108" | 4.0" to 4.5" | 4,000 - 5,500 | 2 Pallets (Oversized) |
| 120" | 4.5" to 5.0" | 5,000 - 6,000 | 3 Pallets (Narrow) |
| 144" | 5.0" to 6.0" | 6,000 - 8,000 | 3 Pallets |
Pallet condition and material type dictate the necessity of secondary support components. Weak or damaged wooden pallets pose a severe point-loading risk, where the weight is not evenly distributed across the load beams. Wire mesh decking, steel cross bars, or specialized pallet supports mitigate this risk by providing a secondary resting surface. This prevents localized failures and stops compromised pallets from falling through the rack structure.
Engineering reviews are non-negotiable, particularly regarding seismic zone compliance. Facilities located in seismically active regions require specialized structural calculations. Engineers must account for dynamic load stresses, requiring heavier baseplates, specialized seismic anchors, and reinforced bracing patterns to ensure the structure remains standing during a seismic event.
Physical rack layouts must integrate with Warehouse Management Systems (WMS) to achieve peak workflow efficiency. Intelligent inventory slotting places high-velocity SKUs in ergonomic, easily accessible pick zones. These are typically located at chest height near the main shipping docks. Low-velocity items are relegated to higher elevations or deeper storage lanes. The physical structure must support this digital strategy, providing the right mix of accessible faces and dense reserve storage.
Rack design plays a major role in supporting automated tracking infrastructure. Beams must accommodate durable barcode labeling, while the overall layout must avoid creating dead zones that hinder RFID tag reading. Clear line-of-sight and structured, logical aisle numbering systems allow automated scanning hardware and human operators to navigate the grid with maximum efficiency. This reduces errors and accelerates the pick process.
Designing a layout requires projecting future throughput rather than merely solving current capacity constraints. An operation must analyze the footprint utilization metric across different racking configurations to determine long-term viability. While a highly dense system might solve an immediate space shortage, it can severely throttle scalability if the facility suddenly needs to handle a wider variety of SKUs. The chosen infrastructure must offer reconfiguration options. Facility managers need the ability to adjust beam elevations, add extensions, or convert lower levels into active picking tunnels as operational demands shift.
Under-engineered racking introduces severe operational friction over time. Systems pushed to their absolute maximum weight limits experience accelerated wear. Frequent component repairs, bent bracing, and deflected beams disrupt daily workflows and force aisles into quarantine. Selecting a robust, slightly over-engineered framework ensures that the structure can absorb the daily abuse of heavy material handling without requiring premature system replacement or constant maintenance downtime.
The perceived availability of used racking often tempts facility managers looking for rapid deployment. Integrating second-hand steel introduces significant operational risks. Used components carry unknown histories of metal fatigue, previous forklift impacts, and overloading stress. Hairline fractures in the steel or compromised welds are rarely visible during a standard visual inspection but can lead to catastrophic failure under a full load.
Used systems frequently lack original engineering stamps and updated capacity documentation. Mixing and matching components from different manufacturers alters the load-bearing dynamics and universally voids manufacturer warranties. For a facility prioritizing safety and long-term structural integrity, the risks associated with undocumented, mismatched used steel far outweigh the convenience of immediate availability.
Executing a successful infrastructure upgrade requires partnering with a highly vetted industrial pallet rack supplier. The evaluation criteria for a supplier must extend beyond manufacturing capabilities. A competent partner provides in-house engineering support, ensuring that the layout is mathematically sound and compliant with all local building codes. They must offer certified installation expertise, utilizing trained crews who understand how to properly anchor baseplates, plumb uprights, and torque connections to exact specifications.
Post-sale support and supply chain reliability are equally critical. As a facility scales, it will inevitably require additional components, replacement beams, or protective accessories. A reliable supplier guarantees long-term component availability and manageable lead times. This ensures that future facility expansions or emergency repairs are not stalled by incompatible parts or discontinued product lines.
Translating a two-dimensional CAD drawing to a physical warehouse floor often reveals layout blind spots. Common physical obstacles include building columns, HVAC ductwork, overhead lighting fixtures, and designated pedestrian walkways. Rack rows must be engineered around these obstructions without compromising aisle widths or structural stability. Failing to account for a single building column can misalign an entire aisle, rendering it impassable for standard forklifts.
Fire code compliance dictates strict spatial requirements. The National Fire Protection Association (NFPA) mandates specific clearances between the top of the stored load and overhead ESFR sprinkler systems. This is typically a minimum of 18 inches. The layout must maintain strict longitudinal and transverse flue spaces. These 6-inch gaps between back-to-back rows and adjacent pallets allow heat to vent upward, triggering overhead sprinklers rapidly and allowing water to penetrate down through the racks. In high-density or highly elevated configurations, integrating in-rack fire suppression systems becomes a mandatory engineering requirement.
Safety implementations are foundational requirements for a functional pallet storage rack system. Visible load capacity plaques must be permanently mounted at the end of every aisle, clearly stating the maximum permissible weight per beam level and per bay. Rack protection accessories, including heavy-duty column guards and end-of-aisle protectors, are essential to deflect forklift impacts away from the load-bearing uprights. In areas where racks back up to pedestrian walkways or work zones, safety netting or wire mesh panels must be installed to prevent loose cartons from falling.
Proper floor anchoring is a mandatory OSHA compliance factor. Every baseplate must be secured to the concrete slab using heavy-duty wedge anchors specified by the structural engineer. Mitigating the risk of progressive collapse requires routine, documented safety audits. Facilities must establish immediate damage reporting protocols, empowering operators to report bent steel or sheared anchors without fear of reprisal. This allows maintenance teams to quarantine the area before a collapse occurs.
Erecting thousands of pounds of steel in an active facility requires meticulous logistical orchestration. Shutting down fulfillment operations for weeks is rarely an option. Phased installation strategies involve migrating inventory into temporary staging zones, clearing a specific sector of the warehouse, and erecting the new infrastructure in isolated blocks. Once a block is inspected and certified, inventory is slotted into the new racks, freeing up the next sector for teardown and installation. This rolling migration ensures daily fulfillment quotas are maintained, minimizing disruption to the broader supply chain.
A: Standard upright frames are typically 42 inches deep to accommodate standard 48-inch deep GMA pallets. This allows for a safe 3-inch overhang on the front and back. Beam lengths are most commonly 96 inches long, which comfortably holds two standard 40-inch wide pallets side-by-side while maintaining required operational clearances.
A: Capacity depends entirely on the engineering specifications and steel gauge. Standard roll-formed beams often hold between 3,000 to 5,000 pounds per pair. Heavy-duty structural steel systems can be engineered to hold well over 10,000 pounds per level. Total frame capacity is dictated by the vertical distance between beam levels.
A: A selective system provides immediate access to every individual pallet, making it ideal for high-SKU, diverse inventory. Drive-in racking sacrifices immediate selectivity for high density. It requires forklifts to drive directly into the structure to store pallets multiple positions deep, making it suitable only for low-SKU, high-volume LIFO operations.
A: Base your choice on your inventory data and physical constraints. Analyze your SKU count, inventory turnover rate, ceiling height, and forklift capabilities. High SKU counts require selective racks. Bulk storage of identical items benefits from high-density systems like push-back or drive-in configurations. Match the infrastructure to your specific throughput requirements.
A: Wire decking provides a secondary safety surface between the load beams. It prevents compromised, broken, or undersized pallets from falling through the rack structure. It also allows overhead sprinkler water to pass through to lower levels during a fire, maintaining compliance with strict municipal fire safety codes.
A: Visual inspections by warehouse staff should occur daily. Operators must be trained to immediately report forklift impacts. Comprehensive, documented inspections by a qualified internal safety officer should occur monthly. An annual audit conducted by an independent, certified rack inspector or structural engineer is highly recommended to ensure ongoing compliance.
